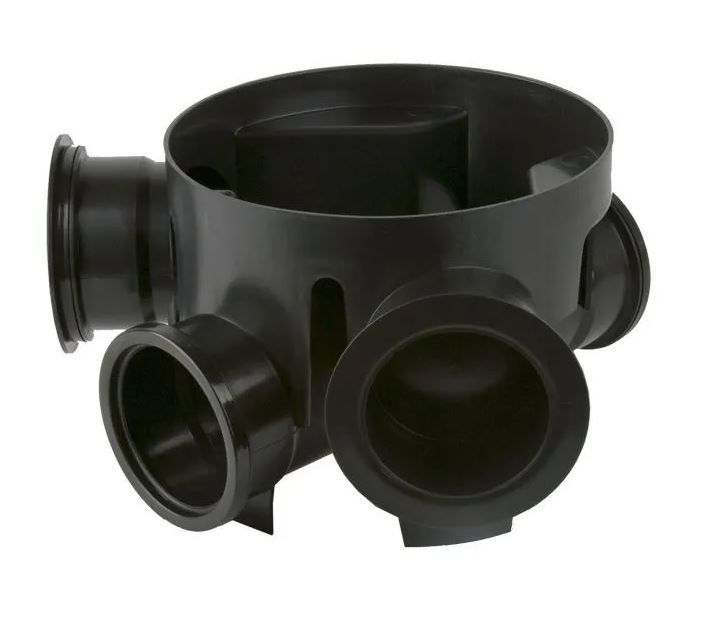

Suitable for use with 110mm drainage structures, this 280mm Chamber Access base with a straight-through inlet is ideal for use with the 280mm Shallow Access Chamber Assembly. It is part of a cost-effective solution which requires only two risers, a chamber base and a lid to comply with the nominal invert depth of 600mm.

Conforming to the requirements of Building Regulations Part H1, when combined with the assembly, this access base includes two socket plugs. It can coordinate with a heavy-duty ribbed riser, which prevents deformation, a double-sealed square cover, which provides a fully airtight unit and a watertight push-fit shallow access chamber.

Features & Benefits: Brett Martin Inspection Chamber Shallow Access 280mm - 110mm

• Meets requirements of Building Regulations Part H1
• For use in 110mm drainage layouts
• 205mm invert
• 280mm diameter
• Straight-through chamber base
• Two sockets included
• For inverts up to 600mm

Please note:

• The invert depth refers to the distance between the top of the unit and the bottom of the inside of the connecting inlet pipework.
